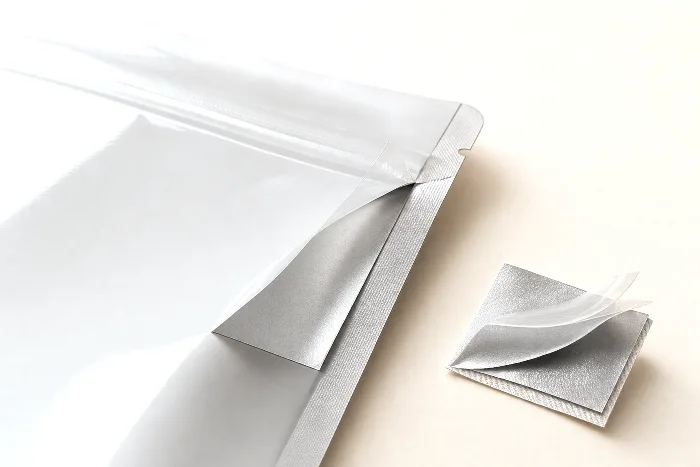

Delamination in flexible packaging: causes and fixes
A delaminating pouch is a bond that has failed. When the layers of a laminate lift, tunnel, or blister apart, the barrier and the seal you engineered are compromised — and the fix almost always lives in the lamination process, not the artwork.
THE SHORT ANSWER
Delamination is a laminate bond failure: the layers of your pouch separate because the adhesive did not fully cure, something contaminated the bond, or ink or trapped solvent got between the layers. The single most likely cause is an under-cured or under-coated adhesive on the converter's lamination line — so start there, then read the pattern to confirm.
- Read the pattern — tunneling and edge lift point to adhesive or cure; blisters over ink point to trapped solvent or contamination
- Usually a process problem, not your artwork — but the spec you supplied still matters
- Never ship delaminated stock — the barrier and seal integrity you designed for are gone
- Fix it by confirming adhesive coat weight and cure, keeping heavy ink out of the bond, and matching the structure to the product chemistry
What delamination is
Almost every flexible package is a laminate — two or more thin webs bonded into a single sheet so the finished pouch or wrapper gets the properties no one film has on its own: a printable outer, a barrier middle, and a sealable inner. A common coffee bag might run PET on the outside, a metallized or foil layer for barrier, and a polyethylene inner that welds shut. Adhesive (or an extruded tie layer) holds the stack together. Delamination is when that bond lets go and the layers come apart.
This guide is part of our packaging problems diagnostic library. The approach here is the same one that works for every packaging defect: read what you're actually seeing, rank the likely causes, and separate a spec problem from a process problem before you argue with anyone about it.
Delamination matters because it destroys the two things the laminate was built to do. It breaks the barrier — moisture, oxygen, and aroma now move between the layers and through the weak point — and it undermines the seal, because a bond that fails near a weld can open a channel the product leaks through. A delaminated pouch is not a cosmetic reject; it is a functional one.
What you're seeing: tunneling, blistering, and edge lift
Before you chase a cause, name the pattern. Delamination shows up in three recognizable ways, and each one biases you toward a different root. Hold the pouch to the light and note where the layers have parted and whether it follows the print.
| Pattern | What it looks like | What it usually means |
|---|---|---|
| Tunneling | Long, narrow channels where two layers lift apart in a line, like a road through the film | Weak or uneven adhesive bond — low coat weight or an incomplete cure |
| Blistering | Isolated bubbles or cloudy, hazy patches, often over heavily printed areas | Trapped solvent or moisture, or ink and coating interfering with the bond |
| Edge lift | Layers peeling open from a cut, slit, or seal edge and creeping inward | Under-cured adhesive, edge contamination, or mechanical and thermal stress |
One quick field test tells you a lot: peel a corner of the laminate by hand. If it separates cleanly with almost no resistance, the bond never developed strength — think coat weight or cure. If it fights you and tears the film instead of separating, the bond is fine and your problem is somewhere else. Save the samples; you will want them when you talk to the converter.
What causes delamination
Delamination has a short list of usual suspects. The table ranks them roughly from most to least common in the pouches we see, with how to tell them apart. Work down it in order.
| Likely cause | Why it happens | How to tell |
|---|---|---|
| Insufficient adhesive or incomplete cure | Coat weight too low, or the roll was slit and converted before the adhesive reached full cure | Tunneling and edge lift across many units; the bond peels cleanly with little resistance |
| Ink or coating in the bond | Heavy solid ink or varnish sits between the layers where the adhesive needs to grip the film directly | Delamination maps to the printed or coated areas; the clear, unprinted zones stay bonded |
| Solvent retention | Solvent from the ink or adhesive did not fully evaporate before the web was wound | Blisters or haze that appear or worsen after the roll sits; a solvent smell in the bag |
| Chemical or moisture attack from the product | Oils, essential oils, solvents, or moisture in the fill migrate into the bond and weaken it | Separation starts on the product side and grows over shelf life, not at day one |
| Thermal or mechanical stress | Heat sealing, hot fill, freeze/thaw cycles, or repeated flexing fatigue the bond | Delamination clusters near seals, folds, gussets, and handling creases |
Most cases resolve to the top two rows. A bond that was never strong enough (cure and coat weight) and a bond that was never allowed to form (ink or coating in the way) account for the large majority of delamination on printed pouches. The lower rows matter most when the defect appears over time rather than off the press — that timing is itself a clue, and it usually points at the product chemistry or storage, which is discussed in the fault section below.
How to fix delamination
Because delamination is a bond problem, the fixes move up the process from the symptom to the lamination step. Run them in order — the first two resolve most cases.
- Diagnose the bond first. Peel a sample of the laminate by hand and read the failure. Where the layers separate, and which pattern they leave — tunnel, blister, or edge lift — tells you which layer bond failed and points to the cause. Keep the failed units as evidence.
- Raise the adhesive coat weight and cure. Ask the converter to confirm the adhesive coat weight and the full cure time for your structure, and to hold the roll for cure before slitting. An under-coated or under-cured laminate is the most common root cause; correcting it usually clears tunneling and edge lift.
- Keep heavy ink and coating out of the bond and seal zones. Solid ink or varnish between the layers weakens adhesion. Design the artwork so heavy solids and coating stay clear of laminated seams and seal areas, and supply clean, print-ready PDF files that keep those zones open.
- Match the structure to the product chemistry. Choose a laminate structure whose films and adhesive suit what the product does chemically — oils, essential oils, solvents, and aggressive actives can attack the wrong bond. Match the structure to the fill before you commit to a print run.
- Control solvent, temperature, and storage. Make sure solvents fully evaporate before the web is wound, and store and ship the finished laminate within a sensible temperature and humidity range. Trapped solvent and thermal or moisture stress can delaminate an otherwise good bond weeks later.
- Prove it on a real run. Pull pouches off the actual production run and peel-test the bond — and the seal — before you scale. Catching a weak bond on a sample is far cheaper than finding it after the pouches are filled.
Is it your fault or your supplier's?
Delamination is usually a converter process problem. Coat weight, cure time, solvent evaporation, film treatment, and contamination control during lamination all sit on the manufacturer's side of the line. If the same structure delaminates on some rolls and not others, that variability is the tell: a spec doesn't change roll to roll, but a process does. That is a conversation to have with your converter, backed by the samples you saved.
Your side is the spec and the environment:
- Structure choice. If you specified a laminate that isn't built for the product's oils, solvents, or moisture, the bond can be attacked from the inside no matter how well it was made. That's a spec fix — a different structure — not a process fix.
- Artwork. Heavy ink or coating pushed into seal and bond areas is an artwork decision. A converter can flag it, but the file came from your side.
- Storage and shipping. Delamination that shows up only after long transit or extreme temperature swings can come from how the finished goods were handled, not how they were made.
A fair rule of thumb: if every unit fails the same way from day one, look hard at the spec; if failures are scattered, batch-dependent, or grow over time, look hard at the process and the product. The honest answer is often "some of each," which is exactly why you diagnose before you assign blame.
When to escalate
Some delamination is a tuning issue the converter fixes on the next run. Some is a sign the structure or the line is wrong for the job. Escalate — formally, in writing, with samples — when:
- Delamination is near a seal or reaches the seal weld, because that can open a channel leak and turn a cosmetic defect into product loss.
- It appears on more than a small fraction of a lot, or recurs across lots after a "fix."
- The bond peels with almost no resistance, which means the laminate never developed strength and the whole run is suspect.
- It spreads over shelf life, which points at product attack or solvent retention and needs the film supplier or a lab involved, not just a press adjustment.
When you escalate, ask for the data that isolates the cause: the adhesive coat weight and cure schedule for the lot, bond-strength or peel-test results, and confirmation that solvent levels were within limits before winding. A converter who runs a controlled process can produce those numbers. If the structure itself is the problem, ask the film supplier to recommend one built for your product's chemistry, then re-qualify with a peel test off a real run before you re-order.
How PackOS prevents delamination at spec time
Most delamination is set in motion before a single roll runs — in the structure that was chosen and the artwork that was approved. PackOS works at that spec-time layer. It captures the laminate structure and the product it has to hold, so a mismatch between the fill's chemistry and the film stack surfaces as a spec question, not a field failure. It reads the artwork against the structure and flags heavy ink or coating sitting over seal and bond zones, where it quietly starves the adhesive. And it turns all of that into a clear, testable spec a converter can actually be held to — the thing you point back at when you ask for coat weight and cure data. You can see how the detection and quality checks run on the technology page, or put a real file through it with Quick Quote.
Frequently asked questions
What is delamination in flexible packaging?
Delamination is when the bonded layers of a laminate — the films, foil, and ink that make up a pouch or wrapper — separate from each other. It shows up as tunneling, blisters, cloudy patches, or lifting edges. The bond between layers has failed, usually because the adhesive did not cure fully, something contaminated the bond, or ink and coating got trapped where the layers were supposed to stick.
What does delamination look like?
The three common patterns are tunneling, which is long channels where the layers lift apart in a line; blistering, which is isolated bubbles or cloudy patches; and edge lift, where the laminate peels open from a cut or seal edge. Reading which pattern you have narrows the cause: tunnels and edges often point to adhesive or cure, while blisters over printed areas point to ink or trapped solvent.
Is delamination the converter's fault or mine?
Delamination is usually a converter process problem — adhesive coat weight, cure time, solvent retention, and contamination during lamination sit on their side. Your side is the spec: choosing a structure that suits the product chemistry, keeping heavy ink and coatings out of seal and bond areas, and storing and shipping within a sensible temperature and humidity range. If the same structure delaminates on some rolls and not others, it points to process; if every unit fails the same way, look at the spec.
Can delaminated pouches still be used?
Generally no. Once the layers separate, the barrier and seal integrity you designed for are compromised, so the pouch can leak, lose its barrier, or fail on the fill line. Delamination near a seal is especially risky because it can open a channel leak. Treat delaminated stock as a quality reject and trace the cause rather than shipping it.
How do you prevent delamination?
Prevention starts at the spec and stays on the process: match the laminate structure to what the product does chemically, keep heavy ink and coating out of the bond and seal zones, and give the converter a clear, testable spec. On the line it means correct adhesive coat weight, full cure before slitting or converting, controlled solvent evaporation, and clean film. Pulling a peel test off the actual run before scaling catches a weak bond before it becomes a recall.
