Shrink sleeve labels: full 360° decoration explained

What a shrink sleeve label actually is

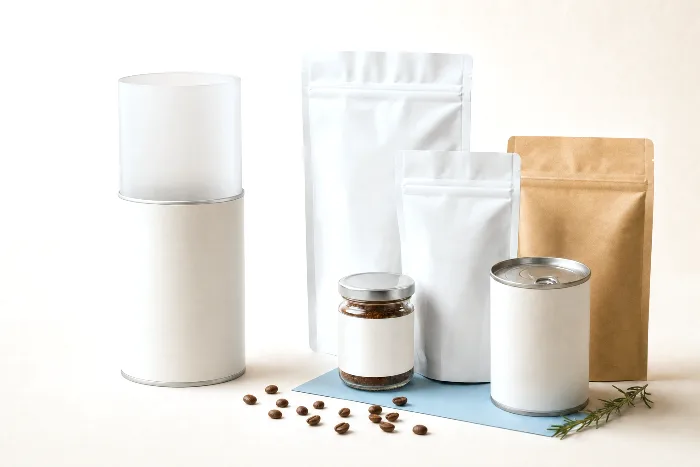

A shrink sleeve is a printed film tube that starts life larger than the container it will decorate. It arrives at the packaging line as a flat roll of seamed tubing — the film is printed, then folded and welded into a continuous tube called the layflat. A machine cuts the tube to length, opens it, and drops it over the bottle or jar. Heat does the rest: as the sleeve passes through a tunnel, the film contracts and grips the container's contours until it looks printed directly onto the surface.

Because the sleeve wraps the whole body, it delivers something a flat label can't: continuous 360°, edge-to-edge graphics with no visible label edge to lift or peel. The film is usually reverse-printed — the ink sits on the inside face, sandwiched between the film and the container — so the graphics are protected from scuffing and the finished piece has a glassy shine. This guide is part of our complete guide to label printing, and the sleeve is the most graphics-forward option in the whole family.

Sleeves also do double duty. Run one up over the cap and perforate it, and you have a tamper-evident closure that shows if the container has been opened. Cut a short one and you have a neck band for a bottle. Common variants include the full-body sleeve, a partial body sleeve, a stand-alone tamper band, and a neck band — often combined so a single applied sleeve both decorates and seals.

The films: PET-G, OPS and PLA

The film is the single biggest decision. It sets how tightly the sleeve can conform, how it feels in the hand, the temperature it shrinks at, and — increasingly the deciding factor — what happens to it at end of life. Three films cover most of the market.

PET-G is the workhorse for full-body sleeves on complex shapes because it can shrink the most. OPS trades some of that shrink for a lower activation temperature and a softer feel, which suits delicate containers. PLA appeals to brands chasing a lower-impact story but carries real end-of-life caveats. There is also a newer class of crystallizable PET and floatable specialty films engineered specifically to survive recycling — worth asking about if recyclability is a priority. Film also interacts with your other label decisions; if you're weighing facestocks elsewhere on the pack, our label materials guide covers the pressure-sensitive side.

How a shrink sleeve is applied

Application is a short, well-defined sequence, and the heat step is where the magic — and most of the defects — happen:

1. Supply. The sleeve arrives as a layflat roll: a printed, seamed tube collapsed flat and wound onto a core.
2. Cut and place. An applicator cuts the tube to the right length, opens it into a cylinder, and drops it over the container in the correct vertical position.
3. Shrink. The container travels through a heat tunnel. A steam tunnel transfers heat evenly and conforms tightly to complex shapes; a hot-air or infrared tunnel is simpler and lower-cost but less even on tricky contours.
4. Set. The film contracts mostly around the circumference — with a little lengthwise pull — until it hugs every curve. Any tamper-band perforations settle over the cap.

Get the heat profile wrong and the failure modes are visible: wrinkles, a wavy top edge, distortion across panels, or a sleeve that bridges a recess instead of tucking into it. The more aggressive the container's shape, the more the process depends on both the right film and an accurate shrink profile — which is the subject of the sizing section below.

Shrink sleeve vs pressure-sensitive label

The most common question isn't which film — it's whether to use a sleeve at all instead of a pressure-sensitive (PS) label, the peel-and-stick label that covers most of the market. Neither is universally better; they solve different problems.

Reach for a sleeve when you need full-body coverage, want the graphics to flow over a shaped or tapered container, or need a tamper band as part of the decoration. Reach for a PS label when a clean front-and-back label does the job, you want lower tooling and application cost, or the container is a simple cylinder where a wrap looks just as good. Sizing a PS label is a different exercise — see the label sizes guide for that path. Many brands run both across a range: a sleeve on the hero SKU with a sculpted bottle, a PS label on the straight-walled line extensions.

The recyclability catch

Here's the honest part. A full-body sleeve is a decoration advantage and a recycling liability at the same time. Because it covers most of the container, the optical and near-infrared sorters at a recycling facility can read the sleeve instead of the bottle, and route the container to the wrong stream. If the sleeve's plastic differs in density from the container's, it can also contaminate the reprocessed flake.

There are real fixes, and they're worth designing in from the start:

• Perforated tear-away sleeves the consumer removes before recycling.
• Wash-off inks that release in the caustic wash so the flake comes out clean.
• Float-separable films (such as floatable OPS) that separate from sinking PET flake by density.
• Compatible materials — matching the sleeve to the container so the whole unit recycles together.

The takeaway: don't assume a sleeve is recycling-friendly, and don't assume it isn't — it depends entirely on the film and the design. The Association of Plastic Recyclers maintains design guidance for exactly this, and it changes as sorting technology improves, so check the current version rather than a rule of thumb. The broader material picture — glass versus plastic, weight versus recyclability — is covered in our glass vs plastic comparison.

Sizing a sleeve to the container

A sleeve is specified by two numbers plus a profile. The layflat width has to be large enough for the sleeve to clear the widest point it must pass over when it drops on, then shrink down to the narrowest point it must hug. The cut height sets how much of the container it covers. And the shrink profile — the difference between the largest and smallest diameters the sleeve spans — determines how much shrink you need, and therefore which film can do the job. A near-straight cylinder needs very little shrink; a bottle that flares at the shoulder and pinches at the waist needs a high-shrink film like PET-G.

Because the film contracts unevenly, the artwork can't be drawn flat and printed as-is. It's deliberately pre-distorted — stretched in the areas that will shrink the most — so it reads correctly once the sleeve is on the container. That distortion is calculated from the container's measured profile, which is why the container geometry matters as much as the graphics, and why color and image elements have to stay in registration through the shrink.

All of this means the container drives the sleeve, not the other way around. The neck finish, the shoulder, the widest and narrowest diameters — those dimensions decide the layflat, the film, and the pre-distortion map. If you're still choosing the container itself, our bottle types guide walks through the shapes and neck finishes that a sleeve then has to conform to.

How PackOS handles shrink sleeve artwork

PackOS treats a shrink sleeve as what it physically is: a decoration wrapped onto a three-dimensional container. It reads the container profile, builds the sleeve as a surface that follows the contours, applies the artwork with the pre-distortion the shrink demands, and renders a photoreal 3D proof so you see the finished, shrunk look — not a flat rectangle — before anything is printed. From the same understanding it prices the job, because once the film, the coverage, and the container are known, the material and production route can be calculated. You can see the rendering and quality checks on the technology page, or try it on a real container with Quick Quote.
